Setup

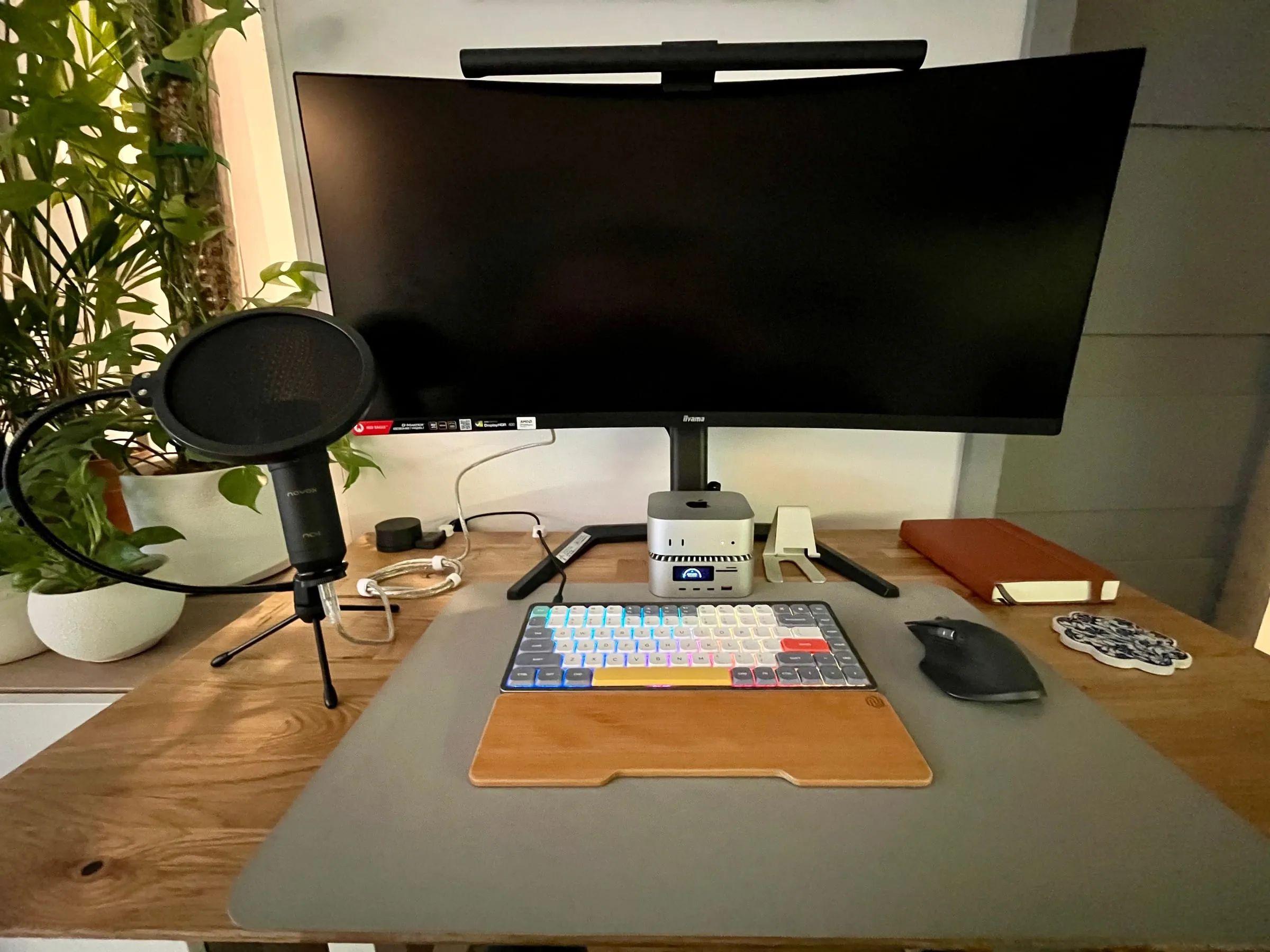

Desktop Setup
| Type | Full Name |
|---|---|
| Computer | Mac mini 2024, Apple M4, 16 GB RAM, 256 GB SSD, Gigabit Ethernet |
| Dock | RayCue ALL-in-One Charger Dock For Mac Mini M4 |
| Monitor | Iiyama G-Master GCB3481WQSU-B1, 34″, 3440×1440 (UWQHD), 180 Hz, USB hub |
| KVM Switch | Ugreen DisplayPort 1.4 KVM Switch, 8K@60 Hz, 2×PC sharing (display, USB peripherals) |
| Hub | Ugreen USB-C Hub 7-in-1, DisplayPort 4K@60 Hz, USB-A 3.0, PD 100 W, SD ↔ microSD |
| Mouse | Logitech MX Master 3S (Graphite) |
| Keyboard | NuPhy Air75 v1 (Gateron G Pro Red switches) |
| Microphone | Novox NC-1 (USB-B, pop filter) |
| Light Bar | Xiaomi Mi Computer Monitor Light Bar |
| Desk Frame | Silver Monkey EDF-180 (White) |
| Desktop | Oak Rustic Desktop (100 × 60 × 3 cm) |
graph TD
subgraph PrimaryStation ["Primary Device Station"]
Computer
Dock
Dock -- "USB-C ↔ USB-C<br/><small>Dock cable</small>" --> Computer
end
subgraph SecondaryStation ["Secondary Device Station"]
Secondary["Secondary Device"]
Hub
Secondary -- "USB-C ↔ USB-C<br/><small>Thunderbolt 5, 80 Gbps, PD 240 W, 16K@30 Hz, 0.5 m extension</small>" --> Hub
end
KVM
subgraph Peripherals
Mouse
Keyboard
Microphone
Lightbar["Light Bar"]
end
Monitor
Computer -- "USB-C ↔ DisplayPort 1.4<br/><small>Ugreen, 32.4 Gbps, 8K@60 Hz, 1 m</small>" --> KVM
Computer -- "USB-C ↔ USB-C<br/><small>Thunderbolt 5, 80 Gbps, PD 240 W, 16K@30 Hz, 1 m</small>" --> KVM
Hub -- "DisplayPort ↔ DisplayPort<br/><small>Monitor cable</small>" --> KVM
Hub -- "USB-C ↔ USB-C<br/><small>Thunderbolt 5, 80 Gbps, PD 240 W, 16K@30 Hz, 0.5 m</small>" --> KVM
KVM -- "DisplayPort ↔ DisplayPort<br/><small>Monitor cable</small>" --> Monitor
KVM -- "USB-A ↔ USB-B<br/><small>Monitor cable</small>" --> Monitor
Mouse -- "USB dongle" --> KVM
Keyboard -- "USB-C ↔ USB-A<br/><small>Keyboard cable</small>" --> KVM
Microphone -- "USB-B ↔ USB-C<br/><small>2 m</small>" --> KVM
Monitor -- "USB-A ↔ USB-C<br/><small>Light Bar cable</small>" --> Lightbar
Additional Equipment
| Type | Full Name |
|---|---|
| NAS | Synology DiskStation DS423+ |
| Storage | WD Red Plus, 4 TB, HDD, SATA III, 5400 RPM (Data, 2 pcs) |
| Storage | WD Red SN700, 500 GB, M.2 NVMe (Cache, 2 pcs) |
| Printer | Brother HL-L2352DW |
Guitar Setup
| Type | Full Name |
|---|---|
| Guitar | Takamine GD51CE-NAT (Natural, high gloss) |
| Case | Gator 6 & 12-String Dreadnought Case (Black) |
| Amplifier | NUX AC-25 (280 × 218 × 220 mm) |
| Cable | Fender Del. Cable Angle Plug 4,5m TN (4.5 m) |
| Strap | Minotaur Suede Guitar Strap Camel (Caramel, Length adjustable 105 - 150 cm) |
| Capo | Shubb C1 |
